NE250F-P006X
- Brand: Made in Australia by Netec Industries
- Product Code: NE250F
- Availability: 2-3 Days
$ AUD 15.31

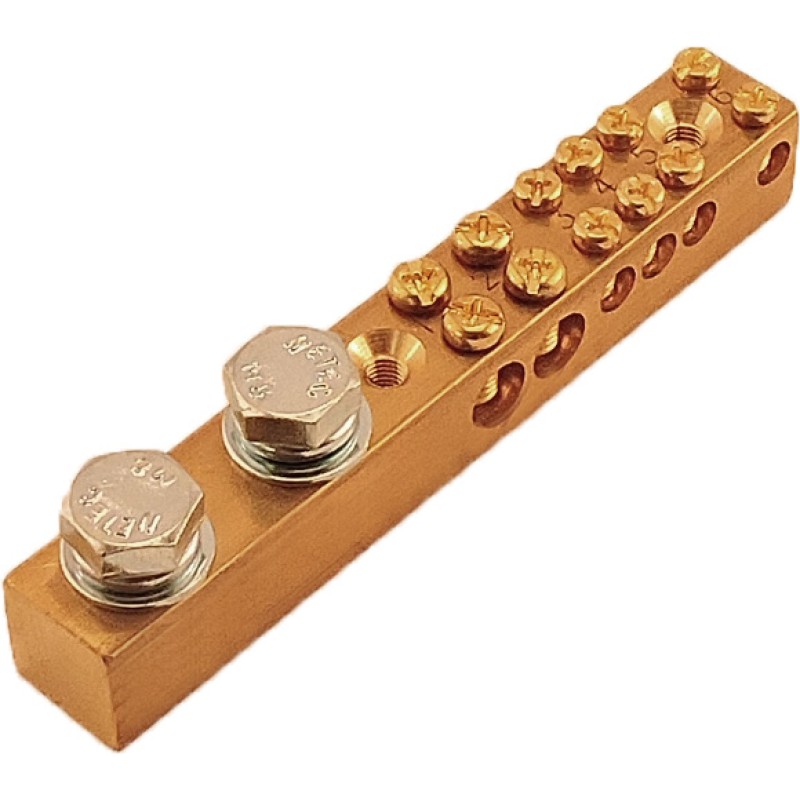

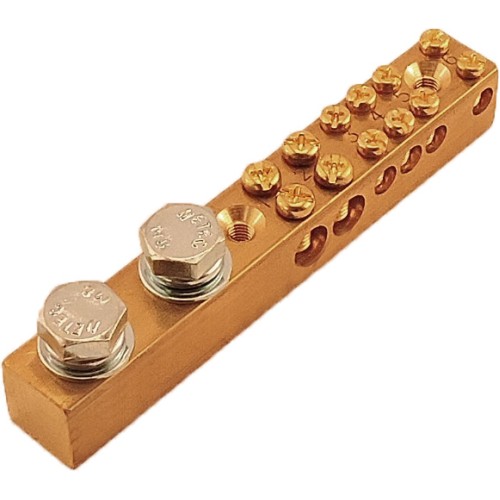

250 Amp Neutral / Earth Bar
6 Pole - 2 x Screws per tunnel
2 x M8 studs, Flat & Spring washers included.
2 x 35mm² + 4 x 16mm² Cable Tunnels
Standard Numbering
* If Insulator feet are required we recommend Netec Part INSF-M5S
MADE IN MANUFACTURED IN AUSTRALIA
MADE TO AS/NZS5112:2015
| Technical | |
| Current Rating | 250 Amp |
| Brass Section | 15.88 mm x 15.88 mm |
| RoHS Compliant | Yes |
| Dimensions | |
| Length | 109.5 mm |
| Mount Hole Type / Apart | M5 Countersunk / (2) 50.0 mm |
| Stud Distance Apart | 23.0 mm |
